Description

Bramidan Baler B7242 SD 72 Inch Vertical Baler for Cardboard and Stretch Wrap

With two large cylinders and a very large filling opening, the B7242 is ideal for locations with significant production of recyclables.

FEATURES

• 72 x 42 Inch bale
• 1,400+ lbs bale weights
• Large load door for large boxes
• 110,000 lbs of press force
• Front tie-off for minimal space consumption
• Compliant with ANSI and UL standards
• Powder Coating provides durable finish in many colors

Large, 72 x 42 Inch Baler
The B7242 baler is a heavy duty 72 x 42 Inch baler that will produce bales weighing 1,400+ lbs.

Modern design and high press force
The B7242 is a perfect example of Bramidan's innovative design combined with a press force of over 110,000 lbs resulting in a machine capable of handling significant loads of cardboard or shrink wrap.

Bramidan Balers

Bramidan Baler B4
Bramidan Baler B5W
Bramidan Baler X10 1ph HD X-Series
Bramidan Baler X10 3ph HD X-Series
Bramidan Baler PC24 HD
Bramidan Baler B20
Bramidan Baler X25 HD
Bramidan Baler X25 HD Galvanized
Bramidan Baler X4830
Bramidan Baler X30 HD
Bramidan Baler X30 HD Galvanized
Bramidan Baler B6030
Bramidan Baler X6030 LP
Bramidan Drum Press DP16
Bramidan Baler X50 HD

How does the baler work?

Time-saving and easy waste handling

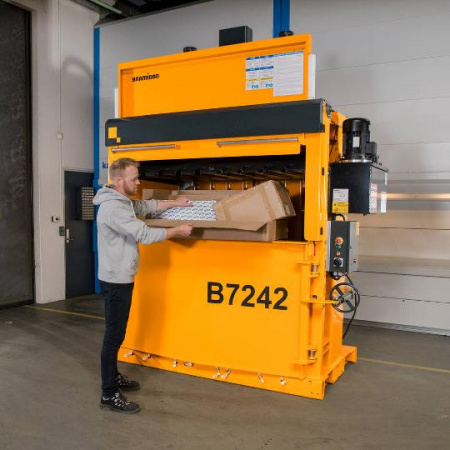

1. Fill your plastic or cardboard waste into the baler.
2. A full-light indicator tells you when the chamber is full.
3. Tie off and eject the finished bale.
4. Remove the bale and store until collection.

SPECIFICATIONS

• Bale size W x D x H (inch) : 72 x 42 x 48
• Feed opening WxH (inch) : 72 x 23
• Power supply : 208/230/480V 3-phase 60Hz
• Motor (HP) : 8.9
• Cycle time avg. (sec) : 22

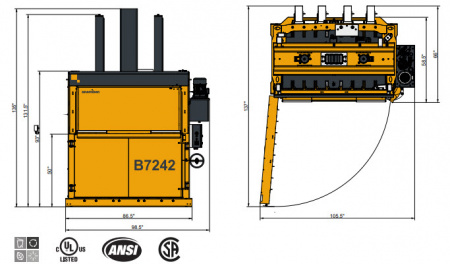

• Dimensions W x D x H (inch) : 100 x 67 x 128 / 93
• Weight (lbs) : 7,100 lbs
• Stroke (inch) : 36
• Number of ties : 8
• Type of tying : Twine / Steel wire
• Full bale light : Yes
• Press force: 110,000 lbs
• Noise level: 62 - 64 dB
• Bale weight: Up to 1,700 lbs (depending on waste material)
• Bale eject : Automatic

Including:

GSM modem (without SIM card and data plan)

Regen hydraulic circuit for faster cycle time

Low noise pump

Full bale indicator light

Front bale ejection system w/o use of chain

Safe 2-handed auto bale ejector

Operator control panel located on front

Hydraulic oil in tank

10 feet cable (without plug)

Starter kit binding

Knife for cutting the strapping

(C)UL® approved control panel

Meets ANSI Z245.5
