Description

Bramidan Baler B20 B-Series Vertical Baler

The B20 is a versatile machine that is suitable for many different industries, including big-box stores, small retail shops, and manufacturing facilities.

FEATURES

• Low noise level (<62 dB)

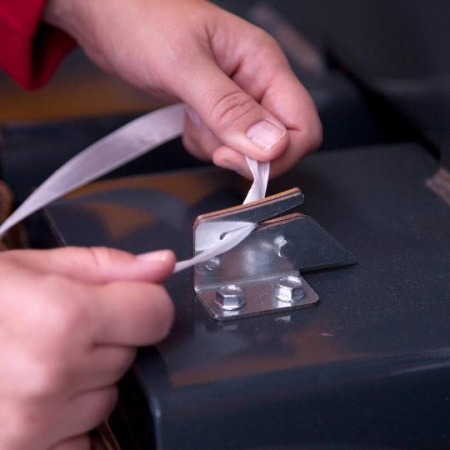

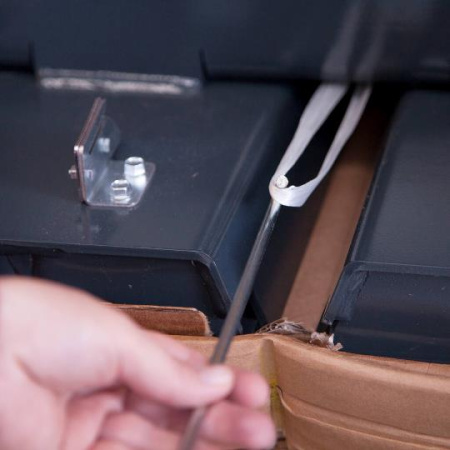

• Quickly tie off bales
• Impressive throughput
• Short press cycle
• Install against wall with front placed strapping
• Large compression ratio
• Powder Coating provides a durable finish in many colors.

Versatile machine for various industries
This machine allows you to recycle a variety of materials in several different industries.

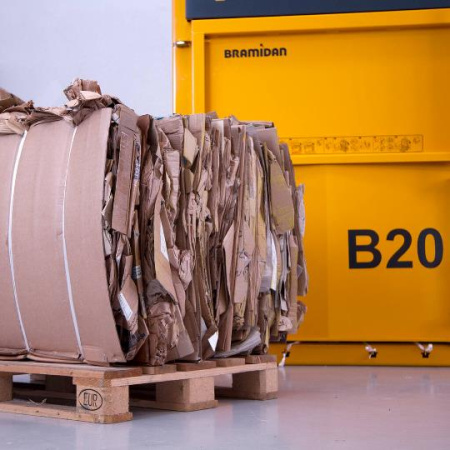

Optimal bale size
Finished bales are the optimal size. They fit on a standard US pallet and can be transported easily.

Bramidan Balers

Bramidan Baler B4
Bramidan Baler B5W
Bramidan Baler X10 1ph HD X-Series
Bramidan Baler X10 3ph HD X-Series
Bramidan Baler PC24 HD
Bramidan Baler X25 HD
Bramidan Baler X25 HD Galvanized
Bramidan Baler X4830
Bramidan Baler X30 HD
Bramidan Baler X30 HD Galvanized
Bramidan Baler B6030
Bramidan Baler X6030 LP
Bramidan Baler B7242 SD
Bramidan Drum Press DP16
Bramidan Baler X50 HD

How does the baler work?

Time-saving and easy waste handling

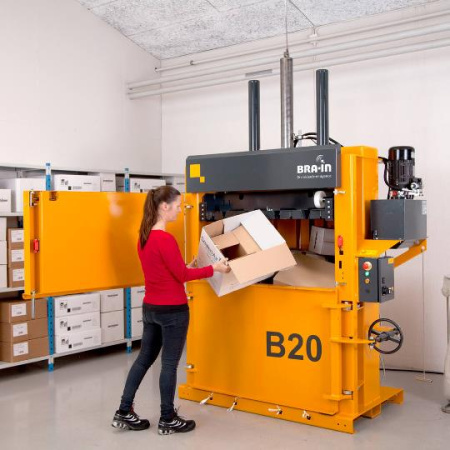

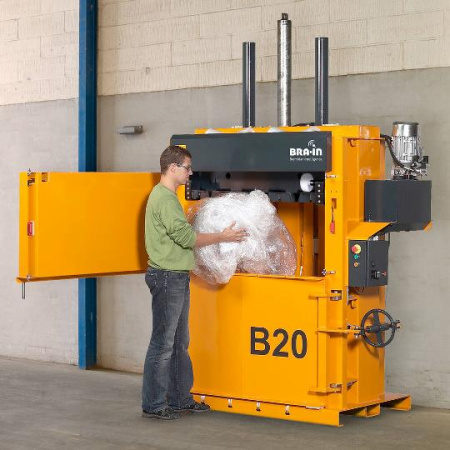

1. Fill your plastic or cardboard waste into the baler.
2. A full-light indicator tells you when the chamber is full.

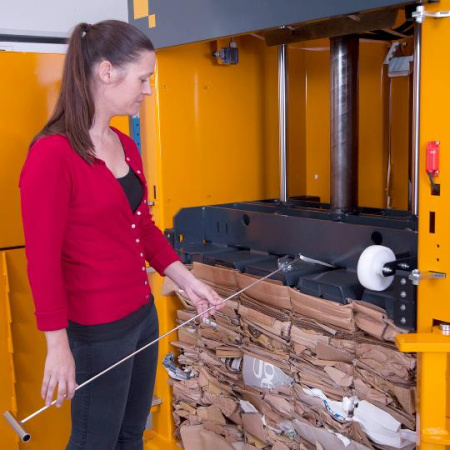

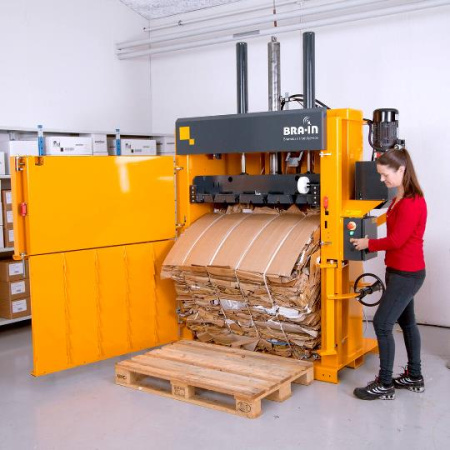

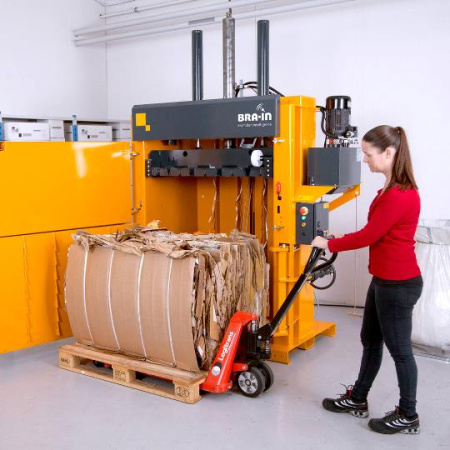

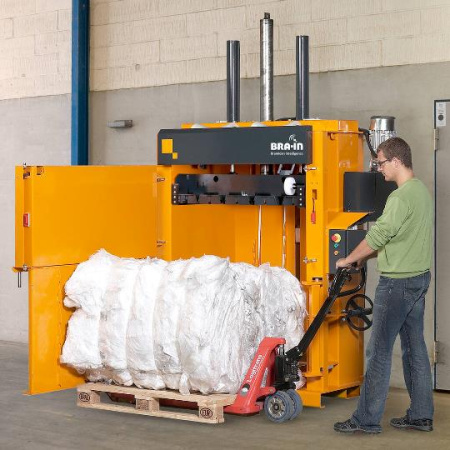

3. Tie off and eject the finished bale.
4. Remove the bale and store until collection.

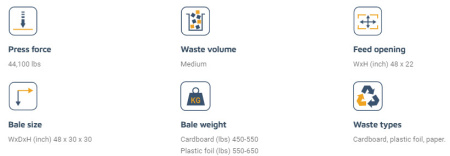

SPECIFICATIONS

• Bale weight cardboard (lbs): 450-550

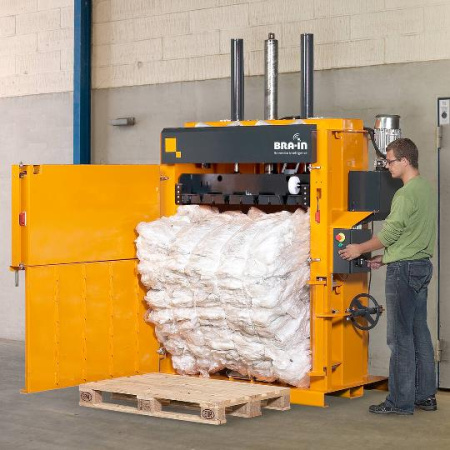

• Bale weight plastic foil (lbs): 550-650
• Bale size WxDxH (inch): 48 x 30 x 30
• Press force (lbs): 44,100
• Power supply: 208/230/480V 3-phase 60Hz
• Motor (HP): 5.5
• Noise Level (dB): 62-64
• Cycle time avg. (sec): 37

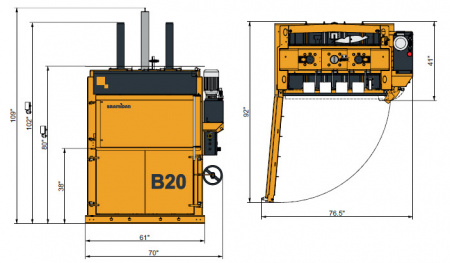

• Dimensions WxDxH (inch): 70 x 41 x 110 / 81
• Weight (lbs): 2,760
• Feed opening WxH (inch): 48 x 22
• Load height (inch): 38
• Chamber height (inch): 56
• Stroke (inch): 30
• Number of ties: 4
• Type of tying: Twine
• Full bale light: Yes
• Bale eject: Automatic
