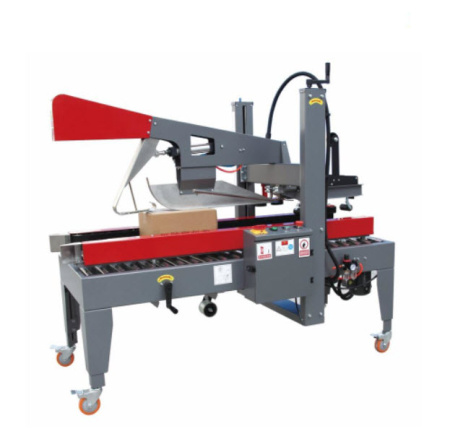

SEALING TAPE MACHINE | CSTAR 3 Automatic Carton Sealer Machine 2 or 3 - Inch Wide Tape

The new C STAR 3, fully automatic case sealer offers top and bottom seals at line speeds of 17.50 meters (17500 mm) per minute and has the ability to apply both 2”(48 mm) and 3”(72 mm) wide tape.

FEATURES

Robust Carbon Steel Frame with Stainless Steel versions available
Dual Mast Construction for Greater Stability
Side Belt Drive for Equal and Consistent Carton Conveyance
Seals up to 30 Cases Per Minute

SPECIFICATIONS

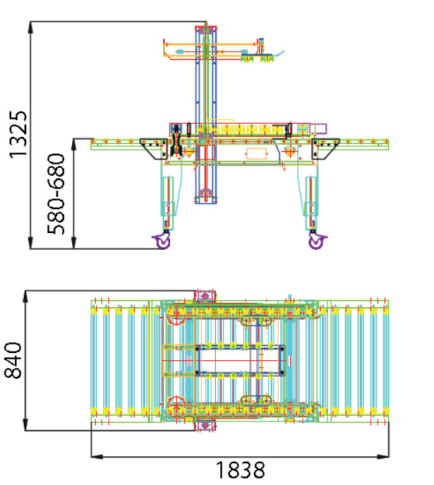

MACHINE DIMENSION

Length: 1768 mm (69.60 Inch)
Width: 840 mm (33.07 Inch)
Height: 1325 mm (52.17 Inch)
Conveyor: 580 - 680 mm (22.83 x 26.77 Inch)

BOX DIMENSION

Length: 150 mm Min. (4.72 Min. Inch)
Width: 145 mm - 500m m (4.72 - 19.68 Inch)
Height: 120 mm - 500 mm (4.72 - 19.68 Inch)

MACHINE WEIGHT: 95 kg (210 lbs)
TAPE HEAD SIZE: 48 mm (2Inch) and 72 mm (3Inch), all in one
TABLE HEIGHT: 580 mm - 680 mm ( 1.9’ - 2.23’)
SEALING SPEED: 17.5 m/min
POWER: 220 V/380 V, 1 PH/3 PH,50/60 HZ,0.5 KW or customized according to the order confirmation

C-STAR MODEL ORDER PAGES

CSTAR 1 Semi-Automatic Side Belt Driven (Two Sides Driven) Carton Sealer 2 or 3 - Inch Wide Tape

CSTAR 2 Semi-Automatic Top and Bottom Driven Carton Sealer 2 or 3-Inch Wide Tape

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com

COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.

Specifications

Manufacturer Part #:	CSTAR 3
Dimensions (LxWxH):	1838.00in. x 840.00in. x 1325.00in.

SPECIFICATIONS MACHINE DIMENSION Length: 1768 mm (69.60 Inch) Width: 840 mm (33.07 Inch) Height: 1325 mm (52.17 Inch) Conveyor: 580 - 680 mm (22.83 x 26.77 Inch) BOX DIMENSION Length: 150 mm Min. (4.72 Min. Inch) Width: 145 mm - 500m m (4.72 - 19.68 Inch) Height: 120 mm - 500 mm (4.72 - 19.68 Inch) MACHINE WEIGHT: 95 kg (210 lbs) TAPE HEAD SIZE: 48 mm (2Inch) and 72 mm (3Inch), all in one TABLE HEIGHT: 580 mm - 680 mm ( 1.9’ - 2.23’) SEALING SPEED: 17.5 m/min POWER: 220 V/380 V, 1 PH/3 PH,50/60 HZ,0.5 KW or customized according to the order confirmation
