Description

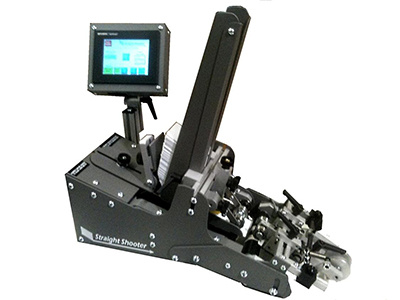

Straight Shooter SA-5 Servo Attaching Feeder

Straight Shooter listened to the requests of the mailing industry by delivering the SA-5 Servo Attaching Feeder. This device is bringing innovations and refinements to the mailing room by incorporating a compact design for an inexpensive attachment solution that can handle heavy workloads and execute jobs with minimal fuss and clutter.

This is a machine that is meant for the mailing facility with a challenging layout. The SA-5, simply put, is a machine that will go where no other machine can. Its compact footprint and simplified design mean you can deploy it on a seemingly endless variety of transport bases.

The SA-5 incorporates the latest in mailing technology. It features an advanced servo-motor system, which provides pinpoint-precision accuracy for positioning documents, while a color monitor is provided to give total control over even the finest aspects of output.

Naturally, a device as advanced as the SA-5 will meet the specific material needs of even the most atypical mailing workloads. The Straight Shooter SA-5 is capable of integrating one or two cards, various magnets, or a wide variety of media options while operating at speeds up to around a whopping 25,000 units per hour. This ensures that even if your job provides you with the most unexpected challenges, the SA-5 will be ready and capable of enduring the work and performing with exceptional results.

Straight Shooter incorporates their patented Buckle Separation technology into the SA-5 to give it the leading edge on competing for feeder machines. This innovative solution makes every other machine seem slow and obsolete. What it does is it separates documents with precision without subjecting them to unnecessary movements and procedures, which could otherwise result in damaging materials and costing operations valuable time and money. With everything combined, the Straight Shooter is definitely the king of the hill when it comes to compact feeders that are expected to perform gruesome workloads.

Key Features

• Takes control of media ranging in size from 2 Inch x 2 Inch up to 5 Inch x 12 Inch with a maximum thickness of 1/4 Inch
• The SA-5 will process a maximum volume of 25,000 single cards in an hour
• The operational threshold for accuracy is tight on the SA-5; it can deliver within 1/8 of an inch
• A colorized touch screen provides access to adjustments and diagnostics for both new and experienced operators
• Delivers products quickly thanks to a high-speed servo motor that also has an advanced controller

Technical Specifications

• Media Handling: Width 2 Inch minimum up to 5 Inch maximum Length: 2 Inch minimum up to 12 Inch maximum
• Thickness: Single sheet up to 1/4 Inch thick
• Speeds: Up to 25,000 single cards attached per hour
• Placement accuracy: 1/8 Inch plus or minus
• Power: 120 vac, 5 amp standard, (240 optional)
• Miss output standard (used to stop transport base or host feeder on feeder out condition)
• Dimensions: 8 Inch wide x 17 Inch long (excluding knock down rollers)

If you have any questions or concerns, contact a customer service representative today.
