D and K Expression 42 Plus (DK-EXP42+) Thermal Wide Format Laminator with Stand

Quantity:

MSRP:
$8,115.00

Price You Pay:

$8,100.00
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

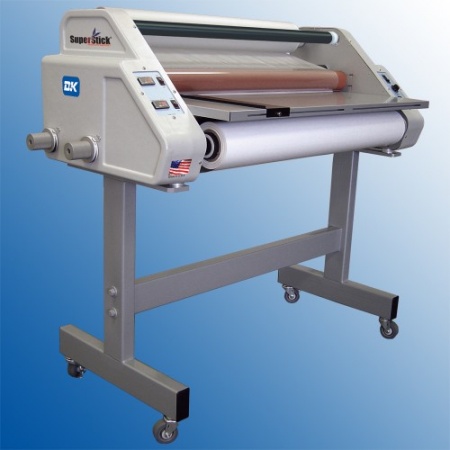

D and K Expression 42 Plus (DK-EXP42+) Thermal Wide Format Laminator with Stand

The Expression (EXP) 42+ Laminator is designed for multi-purpose laminating and mounting of prints up to 41” wide. The EXP 42+ features heavy-duty silicone rollers with independent heat adjustment up to 300° F.

This wide format laminator includes a foot pedal, slitter kit, and release liner takeup for laminating with pressure-sensitive products, including using optically clear adhesives for face mounting to acrylic displays.EXP 42+ laminators include a stand, a fan bank for cooling thermal films, variable speed motors, and self-locking supply shafts.

FEATURES

  • Laminate/encapsulate and mount prints up to 41 Inch (1041 mm) wide
  • Independent upper and lower temperature adjustments up to 300° F
  • Fast set-up and easy operation.
  • In-line slitter for trimming during lamination.
  • Accommodates substrates up to 1/2 inch (12.7 mm) thick.
  • Spring-Loaded adjustable pressure.
  • Four high-capacity forced air cooling fans

Easy To Use

  • Mounter, Laminator, Encapsulator
  • Fast set-up and easy operation.
  • Roller lift for easy film loading
  • In-line slitter for trimming during lamination (optional)
  • Variable roller pressure
  • Accepts low-melt, thermal, and pressure sensitive films
  • Accommodates substrates up to 1/2 Inch (12.7 mm) thick
  • Accommodates rolls up to 8 Inch (203 mm) in diameter
  • Release liner rewind (optional)

Operator-Friendly

  • “Ready” and “Wait” lights indicate when the laminator has reached preset temperatures
  • Independent upper and lower electronic temperature controls with led display
  • Spring-Loaded adjustable pressure on laminating and pull rollers for smooth, even lamination
  • Footswitch allows hands-free operation for guided materials during lamination (optional)
  • Auto-grip shafts for easy loading of film

Heavy Duty

  • Designed for mounting and laminating low-temp, thermal, and pressure sensitive films
  • Heated Rollers for a variety of films
  • Heavy-Duty forward/reverse variable speed motor
  • Sturdy feed-back table with adjustable feed guide
  • Heavy-Duty top grade silicone rubber rollers
  • Heavy-Duty chain and sprocket drive

Cooling Fans

  • Four high-capacity forced air cooling fans

SPECIFICATIONS

  • Working Width: 41 Inch (1041 mm)
  • Width: 57 Inch (1448 mm)
  • Height: 19 1/4 Inch (484 mm)
  • Depth (with feed tray): 27 1/2 Inch (699 mm)
  • Net Weight (Minus Stand): 205 lbs
  • Shipping Weight: 420 lbs
  • Speed: 0 -10 fpm
  • Maximum Temperature: 300°F
  • Maximum Aperture: 1/2 Inch (12.7 mm)
  • Roller Diameter: 3 Inch (76 mm)
  • Air Requirements: N/A
  • Electrical Requirements: 230V 30A
  • Stand or Cart: (included)

Available Options

  • Stand or Cart
  • Footswitch
  • Release Liner Rewind
  • Slitter Kit

Note:

  • It will ship via truck. (We can quote freight but we need zip code)
  • Lead time is 10-15 working days after receipt of your order.
  • Warranty is 1 year part and labor, customer must keep the box in case it needs to come back for repair.

EXP 42+ Wide Format Laminator Video:



How to Operate an EXP 42+ Video:



How to Mount Images to Boards using an EXP 42+:





If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: DK-EXP42
Dimensions (LxWxH): 41.00in. x 57.00in. x 20.00in.

SPECIFICATIONS

  • Working Width: 41 Inch (1041 mm)
  • Width: 57 Inch (1448 mm)
  • Height: 19 1/4 Inch (484 mm)
  • Depth (with feed tray): 27 1/2 Inch (699 mm)
  • Net Weight (Minus Stand): 205 lbs
  • Shipping Weight: 420 lbs
  • Speed: 0 -10 fpm
  • Maximum Temperature: 300°F
  • Maximum Aperture: 1/2 Inch (12.7 mm)
  • Roller Diameter: 3 Inch (76 mm)
  • Air Requirements: N/A
  • Electrical Requirements: 230V 30A
  • Stand or Cart: (included)
