Description

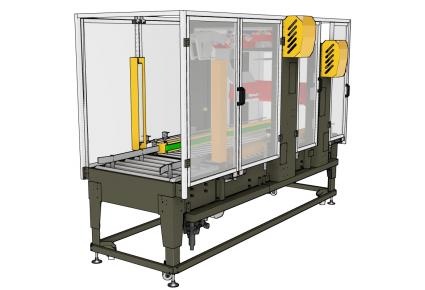

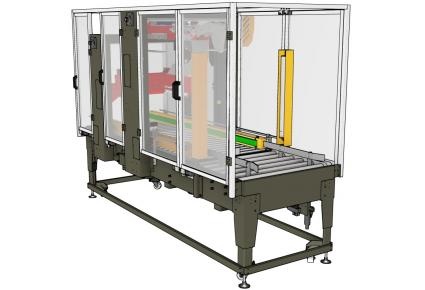

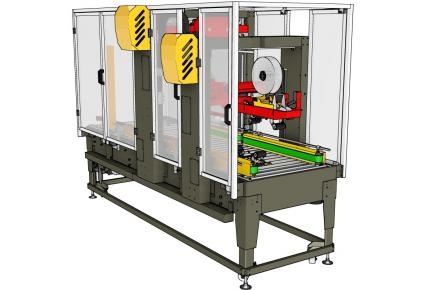

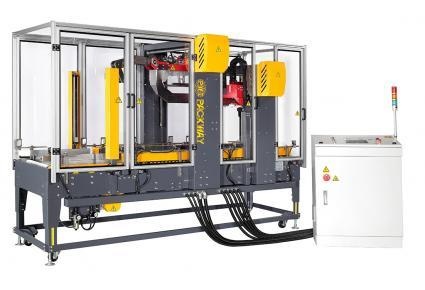

Carton Sealers | Preferred Pack 569SAF Random Fully Automatic High Speed Carton Sealer

Features

• “Servo Drive” flap closer system
• Photo eyes for automatic box positioning
• Light curtain automatically adjusts upper tape head position for increased speeds
• 2 side drive belts to pull the boxes through.
• Belt speed of 100 ft/min or up to 20 CPM
• 220 volt, 3 phase power
• Safety Guarding with magnetic locks
• Suitable for random box sizes
• A more simple and reliable operation

• HMI Touch Panel Control System
• Detection for no tape, tape sealing failure and tape cutting failure (suitable for system operation)
• Automatic case top folding
• Automatic compression rollers

• Safety fences
• Top mast with cushion
• Roller table

SPECIFICATIONS

• Power supply :3 Phase, 220/380/415/440V
• Air Sipply :6kgf/cm2 (137.64L/min.) 85.3 lb/in2
• Tape Head : C-1
• OPP Tape : 2"/ 3"( Please advise when ordering)
• Min. Sealing Size (LxWxH) : 300 x 200 x 160 (mm) 12 x 7.9 x 6.3 (in)
• Max.Sealing Size (LxWxH) : 500 x 400 x 500 (mm) 19.7 x 15.7 x 19.7 (in)
• Tape Overlap : 2 OPP: 60±5 (mm) 2.4±0.2 (in) 3 OPP: 40±5 (mm) 1.6±0.2 (in)
• Working Table Height : 550~810 (mm) 21.7~31.9 (in)
• Max loading weight : 30 (kg) 66 (lb)
• Capacity : approx. 16 boxes/min. For box length 300mm (Belt speed 33 M/min)
• Net Weight : 330 (kg) 728 (lb)
• Machine Size (LxWxH) : 2859 x 1306 x 2021 (mm) 113 x 51.4 x 79.6 (in)

OPTION

• 60 sec. auto-stop

• Safety fences
• Extension Roller Table
• Tape overlap 70±5mm
• Tape overlap 95±5mm
• customize sealing size
• Outside diameter of OPP Tape 340mm (13.5")

• Combine with carton erector, or strapping machine

• Stainless steel structure SUS #304
