Description

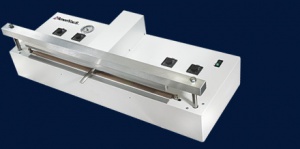

AmeriVacS AVN - Retractable Nozzle Vacuum Sealer with Gas Purge

The AmeriVac Retractable Nozzle Vacuum Sealer is Foot Pedal Activated Gas-Flush Vacuum Packaging at its finest. The AVN Vacuum Machine with a ¼ inch (10mm optional) wide Sealing Element delivers a leak proof seal for electronic devices that require moisture barrier bags.

With one touch of the pedal, the AVN Vacuum Sealer flushes out oxygen and moisture with nitrogen, the automated stainless steel nozzle retracts, and your sensitive components are sealed in seconds. Clean Room compatible, the AVN is also ideal for dry packaging applications on trays, tape and reel, tubes and a variety of SMD shipping containers.

Combine the AVN's precise automation with speed, extensive safety features and incredible durability, and faulty seals resulting from operator or machine error are virtually eliminated. Providing additional functionality and convenience, the AVN's gas-flush feature can be switched off for impulse heat only sealing.

Designed, engineered, and built in our facility, our sealers are the result of years of expertise in the packaging industry. Don’t compromise your reputation with the purchase of inferior equipment, ask about our 1-week Comparison Program and see for yourself why AmeriVacS sets the industry standard.

The AVN is hand assembled in the U.S. at AmeriVacS facility using only superior grade components. The AVN model is offered in four seal lengths (20, 25, 30, 35 inches)

SPECIFICATIONS

Seal Lengths:	30 inches
Seal Width:	1/4 inch (10 mm. Option)
Vacuum Flow:	3 CFMMax.
Vacuum Pressure:	27 inHg.
Air Requirements:	5 CFM at 90PSI
Amps at 120 Volts A.C.:	12
Unit Size (LxWxH):	38 x 10 x 7 Inches
Approximate Weight:	50 lbs.
Approximate Shipping Weight:	57 lbs.

OPTIONS

	20”	25”	30”	35”
Upper and Lower Heating Elements	$275	$375	$475	$575
Stainless Steel Upgrade	$500	$550	$600	$650
10mm Element Upgrade	$250	$300	$350	$400
Coalescing Air Filter with Auto Drain	$195	$195	$195	$195
Dual Nozzle (w/ Dual Vacuum Pumps)	$765	$765	$765	$765
Additional Vacuum or Gas Cycle	$250	$250	$250	$250
Vacuum Filter	$100	$100	$100	$100
Vacuum Regulator	$50	$50	$50	$50
220 Volt A.C. 50-60 Hz Conversion	$350	$350	$350	$350
Digital Temperature Control	$1,995	$1,995	$1,995	$1,995
Ported Exhaust	$220	$220	$220	$220
Low-Pressure Bar Close	$250	$250	$250	$250
Work Tray – 20”x 12”	$75	$75	$75	$75
Multi-Position Stand	$985	$985	$985	$985
