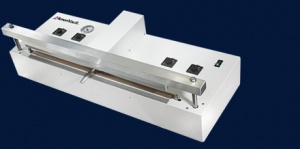

AmeriVacS AVN-35 - Retractable Nozzle Vacuum Sealer with 35 inch Sealing Length/ Seal Bar and Gas Purge

The AmeriVac Retractable Nozzle Vacuum Sealer is Foot Pedal Activated Gas-Flush Vacuum Packaging at its finest. The AVN Vacuum Machine with a 35" x 1/4" seal (10mm optional) wide Sealing Element delivers a leak proof seal for electronic devices that require moisture barrier bags.

With one touch of the pedal, the AVN Vacuum Sealer flushes out oxygen and moisture with nitrogen, the automated stainless steel nozzle retracts, and your sensitive components are sealed in seconds. Clean Room compatible, the AVN is also ideal for dry packaging applications on trays, tape and reel, tubes and a variety of SMD shipping containers.

Combine the AVN's precise automation with speed, extensive safety features and incredible durability, and faulty seals resulting from operator or machine error are virtually eliminated. Providing additional functionality and convenience, the AVN's gas-flush feature can be switched off for impulse heat only sealing.

Designed, engineered, and built in our facility, our sealers are the result of years of expertise in the packaging industry. Don't compromise your reputation with the purchase of inferior equipment, ask about our 1-week Comparison Program and see for yourself why AmeriVacS sets the industry standard.

The AVN is hand assembled in the U.S. at AmeriVacS facility using only superior grade components. The AVN model is offered in four seal lengths (20, 25, 30, 35 inches)

SPECIFICATIONS

Seal Lengths:	35 inches
Seal Width:	1/4 inch (10 mm. Option)
Vacuum Flow:	3 CFMMax.
Vacuum Pressure:	27 inHg.
Air Requirements:	5 CFM at 90PSI
Amps at 120 Volts A.C.:	15
Unit Size (LxWxH):	43 x 10 x 7 Inches
Approximate Weight:	54 Lbs.
Shipping Weight:	70 Lbs.
Shipping Dimensions:	52 L. x 17 W. x 14 H. inches
Method of Shipping:	UPS

Additional options are available for AmeriVacs AVN Series Vacuum Sealers

• AmerivacS Vacuum Sealer 110/ 220 Volt Conversion Option

• AmerivacS Dual Nozzle Option w/ Dual Vacuum Pumps

• AmerivacS Coalescing Air Filter w/ Auto Drain for Vacuum Sealer

• AmerivacS Additional Vacuum or Gas Cycle Option for Vacuum Sealer Machine

• AmerivacS Vacuum Sealer Work Shelf for AV Series Vacuum Machine

• Digital Temperature Control - 1 per seal bar

• AmerivacS Vacuum Regulator Option for Vacuum Sealer Machine

• Low-Pressure Bar close

• Multi-Position Machine Stand

• Ported Exhaust

• Vacuum Filter
