Description

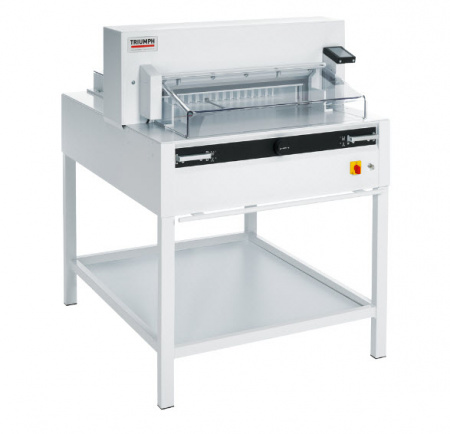

MBM Triumph 6655 25 1/2 Inch Automatic Programmable Cutter Package (CU0491P)

Floor Stand Cutter with 600 Sheet Capacity, 25.5" Cutting Length and 1 inches Narrow Cut with Cutting sticks, Cutting knives, and Side tables.

Workplaces with essential need of paper cutter because of high volume of paper cutting traffic should look nowhere because MBM has launched 6655 electric paper cutters from its triumph collection. Multi lingual feature a 7” large programmable touch pad that is installed for operating convenience. The electric cutter is fast and easy to operate as it can cut through a couple of hundred papers at once. The 6655 cutter has several features that provides the ability to attain the perfect cut like electric blade, back gauge, electronic hand wheel, automatic clamp, control module and optical cutting line. Furthermore, to make the operations safe there are many safety features inclusive in the Triumph 6655 electric paper cutter. Safety features that makes the operations convenient are two hand operation, safety guards, disc brake, safety lock etc. There is also a tool holder on rear side for convenience.

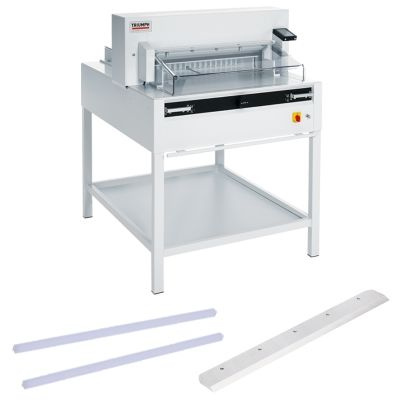

Package Includes

• A Cutter (CU0491)
• Side Tables (CU0495)
• High quality Cutting Knife (AC0656) made purely from steel
• Sticks (AC0679)

Dimensions

• Cutting height: 3 Inches
• Length behind the blade: 24 Inches
• Narrow cut: 1 Inches
• Cutting width: 25 ½ Inches

MBM Triumph 6655 Electric Paper Cutter

• Automatic electric programmable machine with electric blade
• Cutting width and height of 25 1/2 and 3 Inches respectively
• Equipped with electronic hand wheel for manual back gauge positioning
• Easy to operate keypad with 99 program storage with 99 steps each
• Assembled with a tool holder on the rear side to keep tools within reach

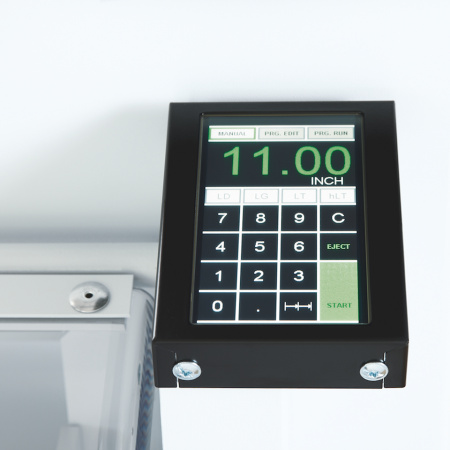

• 7” large multi lingual touch pad to position the power of back gauge
• To analyze exact trim marks are indicated with bright LED optical line
• Patented EASY CUT ensures safety with two hand operations
• Dimensions of the product is 48 x 39 x 51 Inches
• Adjustable hydraulic clamping pressure can be set between 1900 to 3800 psi
• Comes with 1-year limited warranty excluding wearables
• Manufactured in Germany

SPECIFICATIONS

• Dimensions (H”xW”xD”) : 51 x 39 (61.5 w/ side tables) x 48
• Length Behind Blade (Inches) : 24
• Narrow Cut (Inches) : 1
• Cutting Width (inches) : 25.5
• Sheet Capacity : 600
• Operation : Automatic Programmable
• Type of cutter : Floor Stand Cutter
• Cutting Height (Inches) : 3
• Blade Drive : Electric
• Paper Clamp : Automatic
• Back Gauge Setting : Electronic Hand Wheel
• Warranty : 1 year
• Country of Origin : Germany
• Power Supply (Volts) : 115v, 60Hz, 20 amp dedicated line req.
• User Type : Large Office
• Optional Accessories : Side Tables
• Applications : Print Shops, Copy Centers
• Cutting Material : Paper
• LED Laser Cut Line : Yes
• Safety Feature : Comprehensive SCS Safety Package

DEMO VIDEO

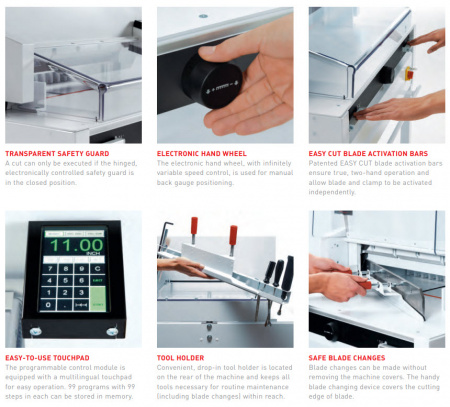

Safety Features

• Patented EASY CUT electronic blade activation bars for true two-hand operation

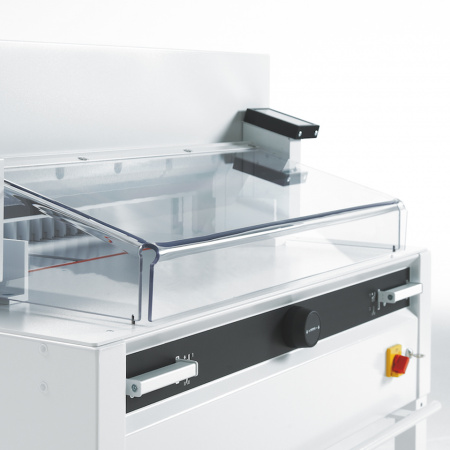

• Transparent, electronically controlled front safety guard
• Safety cover on rear table
• Main switch and safety lock with key
• 24 volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade return from every position
• Disc brake for instant blade stop

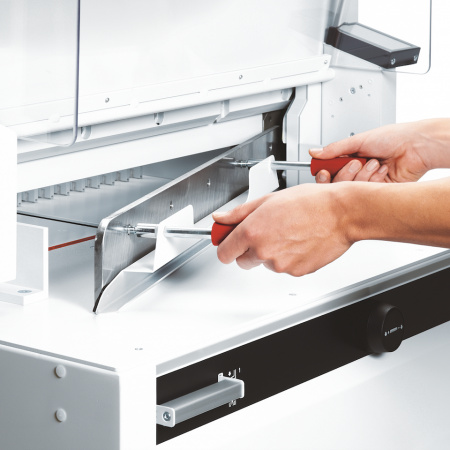

• Blade changing device covers cutting edge of blade
• Blade depth adjustment from outside of machine
• Blade and cutting stick can be changed without removing covers

Characteristics

• Programmable cutter with automatic clamp, power back gauge, and digital touchpad
• Ergonomic, 37" working height
• Electric blade and clamp drive
• Electric back gauge drive with touchpad for easy programming
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Pre-programmed for standard paper sizes
• Memory key for repeat cuts
• Automatic set function for reference measurement and eject function for pushing out paper
• Self-diagnostic system with error indication on display
• Electronic hand wheel with variable speed control for manual back gauge setting

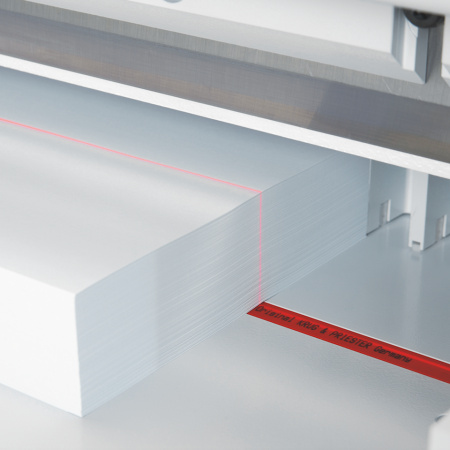

• Bright, LED optical cutting line
• Adjustable, spindle guided back gauge with narrow separations and plastic gliders
• Dual side guides on front and rear tables
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase work surface
• UL and C UL approved

Warranty

• 1-year limited warranty, excluding wearables
