Pallet Wrapper | SFERA Easy Arm Film Wrapping Robotic Pallet Wrapper

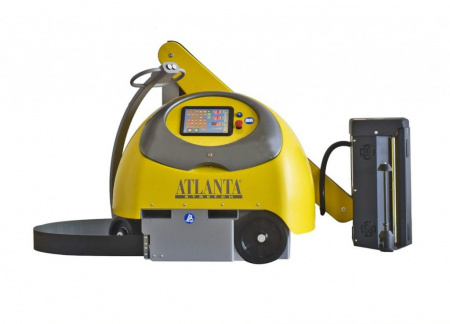

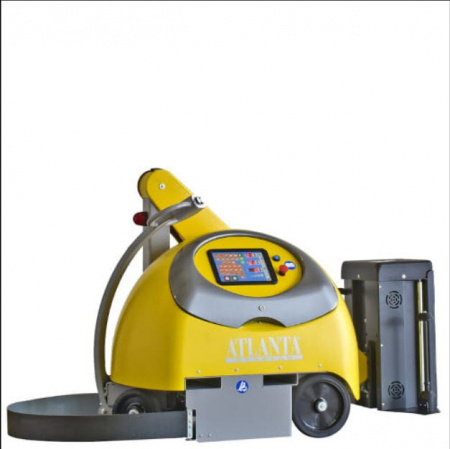

SFERA EASY ARM

Sfera Easy is a leader in the film-wrapping robot segment. Thanks to its small size it is easy to move, store and use. The operator has all the comforts in a machine of this type. The learning curve is very short and from the moment of receipt, you just have to unpack and start it up. Moving a pallet wrapper has never been easier.

A film wrapping robot Designed for heights

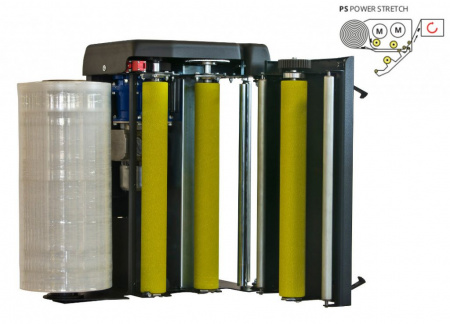

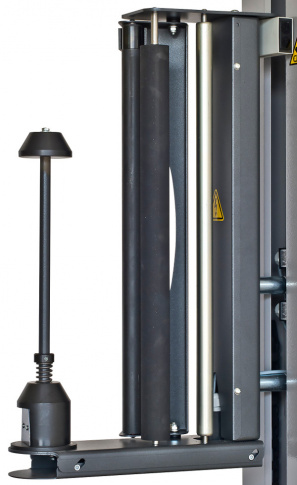

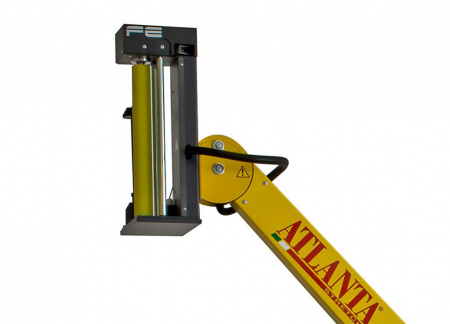

The Sfera Easy Arm is designed to reach the top of tall pallets without a problem. The articulated arm of the machine can be equipped with FM, FE, PRS, and PS heads, which allows you to pack with any type of stretch film, whether macro-perforated or standard. With a height of up to 2,400 mm this easily competes as one of the most advanced robots in its range on the market.

Ready to work

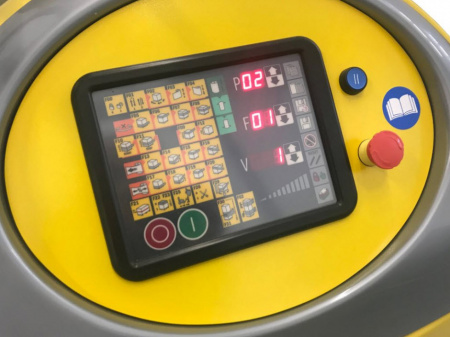

Are you looking for an efficient packaging machine that takes up little space? Sfera Easy is your wrapper. It packs pallets in less than a minute and does not need installation, you receive it in your warehouse and it will be ready to act. The Sfera Easy Touch II system is a simplified control panel that will allow you to easily manage up to 99 predefined work programs and program your own actions.

FEATURES

• Easy installation, no maintenance
• Intuitive control panel
• Automatic load height detection.
• Film tension adjustable from panel
• Reinforcement wraps in the middle of the pallet
• 99 different programmes to save
• Automatic short cycle film cutting system
• Automatic film cutting system
• Carriage speed adjustable in up/down direction
• Adjustable rotation speed
• Film consumption reading (PSR, PS)
• Altimeter function
• Rechargeable gel battery
• Maintenance-free gel battery
• Electronically adjustable stretch.
• Start wrapping at specific height
• Finish envelope in concrete height
• Soft start
• Pallet cover function
• Space-saving, easy to transport
• Film weight control

SPECIFICATIONS

• Wrapping programs model SFERA EASY : Operating panel 11 Inch TOUCH with 6+1 Programs
• Wrapping programs model SFERA : Operating panel 11 Inch TOUCH with 99 Programs
• Min pallet dimension : 650 x 600 mm (25.59 x 25.59 Inch)
• Max pallet dimension : Pallet size can be programmed on the operating panel
• Adjustable speed facilitated by frequency changer : Max 65 m/min
• Carriage braking system : FM (FTL=Force to load)
• Standard wrapping height : 2200 mm (86.61 Inch)
• Optional wrapping height: 2700 / 3000 / 3500 mm (106 / 118 / 138 Inch)
• Photocell detection of load height : STANDARD SUPPLY
• Adjustable Spool carriage speed facilitated by inverter : From 1,3 up to 5,4 m/min
• Upwards Spool carriage speed : Independently settable
• Downwards Spool carriage speed : Independently settable

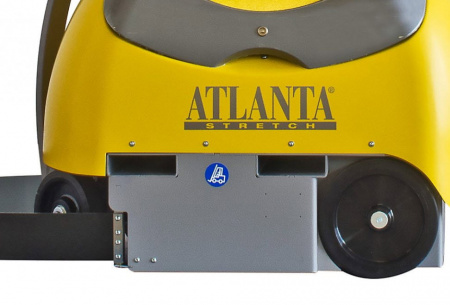

• Lifting with forklift truck : STANDARD SUPPLY
• Total installed power : 0,55 Kw
• High frequency built-in battery charger : 230 V – 50/60 Hz
• Standard charging voltage : 230 V – 50/60 Hz – 1 Ph
• Operating voltage : 24 V
• Electrical and motor protection system : IP 20
• Output capacity : 35 Pallets per Hour **
• Depending on film quality and working environment: Wrapping conditions and pallet dimensions have an influence on the Max output capacity

OPTIONS

Motorised pre-stretch head PRS at 200% (1 inch to 3 inches) with in spare 150% and 250%.

Automatic film cutting at the end of the cycle.

Stretch film weight consumption check.

Overseas packing in wooden box + VCI Anti-Corrosion Plastic Cover

Packaging dimensions of 800 x 1500 x 1250 mm (WxLxH) with gross weight of about 400 Kg
