SEALING TAPE MACHINE | CSTAR 1 Semi-Automatic Side Belt Driven (Two Sides Driven) Carton Sealer 2 or 3 - Inch Wide Tape

The new C STAR 1, 2 side belt driven, adjustable semi-automatic case sealer offers top and bottom seals at line speeds of 17.50 meters (17500 mm) per minute and has the ability to apply both 2 Inch (4 8 mm) and 3 Inch (72 mm) wide tape.

FEATURES

Robust Carbon Steel Frame with Stainless Steel versions available
Dual Mast Construction for Greater Stability
Side Belt Drive for Equal and Consistent Carton Conveyance
Seals up to 30 Cases Per Minute

SPECIFICATIONS

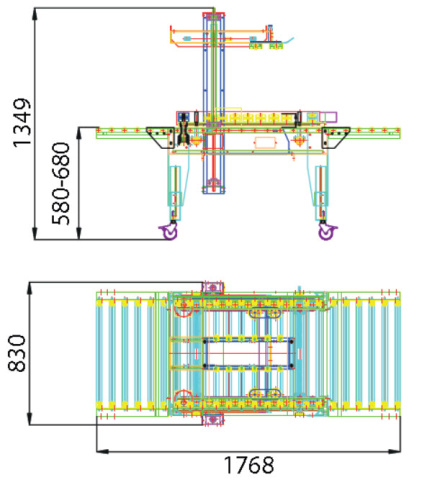

MACHINE DIMENSION

Length: 1768 mm (69.60 Inch)
Width: 830 mm (36.67 Inch)
Height: 1349 mm (53 Inch)
Conveyor: 580 - 680 mm (22.83 x 26.77 Inch)

BOX DIMENSION

Length: 120 mm Min. (4.72 Min. Inch)
Width: 120 mm - 500m m (4.72 - 19.68 Inch)
Height: 120 mm - 500 mm (4.72 - 19.68 Inch)

MACHINE WEIGHT: 95 kg (210 lbs)
TAPE HEAD SIZE: 48 mm (2Inch) and 72 mm (3Inch), all in one
TABLE HEIGHT: 580 mm - 680 mm ( 1.9’ - 2.23’)
SEALING SPEED: 17.5 m/min
POWER: 220 V/380 V, 1 PH/3 PH,50/60 HZ,0.5 KW or customized according to the order confirmation
