Description

D and K Bienfang 3648H Vacuum Press - Hunt Seal 2180 VacuSeal Wide Vacuum Dry Mount Press Wide Format Laminator

The 3648 model has been discontinued. The 4468 and the 5298 models are still available. Click on the tab for Related Items and you will see the links to those items. We do have parts and supplies for the 3648.

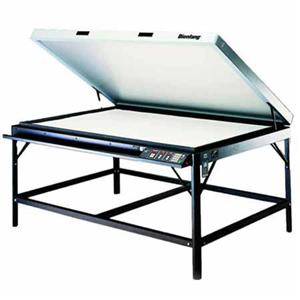

The D and K Bienfang 3648 Vacuum Press - Hunt Seal 2180 VacuSeal Wide Vacuum Dry Mount Press Laminator is a wide format laminator that has a working area or bed of 36 x 48 x 1 Inches for framing, mounting, and laminating display materials or texturing artwork. The 3648H Vacuum Press and VacuSeal 2180 Laminator controls all 4 elements of dry mounting in one step by having a digital panel located near the lid that controls time, temperature, and pressure of the vacuum. Moisture is automatically reduced during the first 30-45 seconds while the vacuum is creating pressure around the mounting materials. The 3648H Vacuum Press and VacuSeal 2180 also has the capability to do cold mounting for heat sensitive materials. You can process several pieces of varying sizes and thickness simultaneously to speed production. The digital microprocessor technology and touch-pad controls assure quick, efficient and easy operation.

Optional Stand is available on this website. The Product I.D. Number is 16117.

Shipping Dimensions: One (1) Hunt 2180 (3648): Dimensions: 56 x 47 x 15 Inches. Weight: 325 lbs.
.

Shipping Dimensions: One (1) Hunt 2180 (3648) Stand: Dimensions: 4 x 7 x 75 Inches. Weight: 35 LBS.

D and K Replacement Parts for Dry Mount Press 3648H/2180

**Click on the links below to go to the item page for the parts.**

Heater - TS2302105 for Dry Mount Press 3648H
Vent Cloth - TS5214012 for Dry Mount Press 3648H
Diaphragm Assembly - TS6299118 for Dry Mount Press 3648H
Foam Strips Front/Back - Long: Individual Strip - TS2205053 for Dry Mount Press 3648H
Foam Strips Sides - Short: Individual Strip - TS2205054 for Dry Mount Press 3648H

Common Parts for D and K Replacement Parts for Dry Mount Press 3648H/2180, 4468H/2160, 5298H/2170 and 3444H

**Click on the links below to go to the item page for the parts.**

Tracking Iron Bolt Outlet - TS1105024 for Dry Mount Press 3648H, 4468H and 5298H
Solenoid - TS1122087 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Pump Elbow - TS1122092 for Dry Mount Press 3648H, 4468H and 5298H
Side Latch - TS1123013 for Dry Mount Press 3648H, 4468H and 5298H
Gas Spring - TS1124013 for Dry Mount Press 3648H, 4468H and 5298H
Accessory Plug - Pump - TS1202052 for Dry Mount Press 3648H, 4468H and 5298H
Solid State Relay - TS1306026KIT for Dry Mount Press 3648H, 4468H and 5298H
20AMP Breaker Switch - TS1308041 for Dry Mount Press 3648H, 4468H and 5298H
Conduit Strain Relief - TS1106047 for Dry Mount Press 3648H, 4468H and 5298H
Power Board - TS2304092 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Power/Control Board - TS2304093 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Hinge Screw - TS40030 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Ribbon Cable - TS5304026 for Dry Mount Press 3648H, 4468H and 5298H
Sensor Assembly - TS6208075 for Dry Mount Press 3648H, 4468H and 5298H
Current Pump - Thomas - TS6299126KIT for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Side Latch Retrofit Kit - TS6299139 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Wiring Harness - TS5304027 for Dry Mount Press 3648H and 4468H
Ball Studs - TS1068010 for Dry Mount Press 3648H, 4468H and 5298H
Leveling Feet - TS1103010 for Dry Mount Press 3648H, 4468H and 5298H
C-Clips - TS1126015 for Dry Mount Press 3648H, 4468H and 5298H
Manifolds - TS5099023 for Dry Mount Press 3648H, 4468H and 5298H
Conduit Connectors - TS1106046 for Dry Mount Press 3648H, 4468H and 5298H

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
