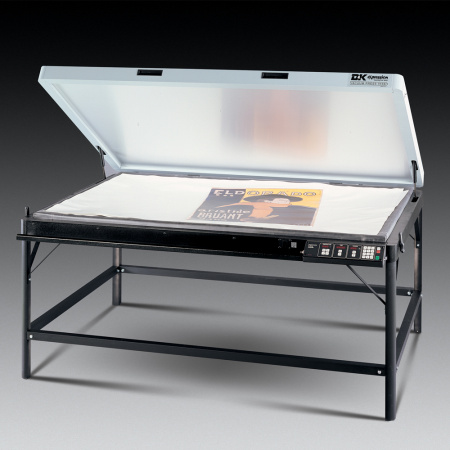

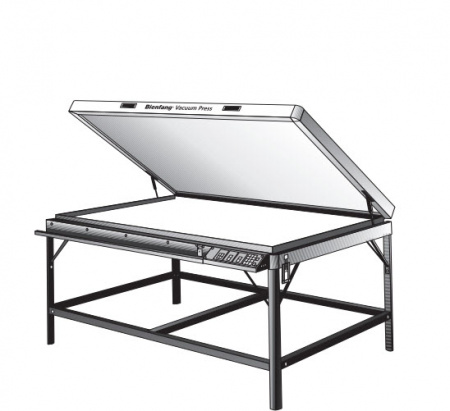

D and K Bienfang 4468H Vacuum Press -Hunt Seal 2160 VacuSeal Wide Vacuum Dry Mount Press Wide Format Laminator

The D&K Bienfang 4468H Vacuum Press - Hunt Seal 2160 VacuSeal Wide Vacuum Dry Mount Press Wide Format Laminator is a wide format laminator that has a working area or bed of 44 x 68 x 1 Inches for framing, mounting, and laminating display materials or texturing artwork. The 4468H Vacuum Press and VacuSeal 2160 Laminator controls all 4 elements of dry mounting in one step by having a digital panel located near the lid that controls the time, temperature, and pressure of the vacuum. Moisture is automatically reduced during the first 30-45 seconds while the vacuum is creating pressure around the mounting materials. The 4468H Vacuum Press and VacuSeal 2160 also have the capability to do cold mounting for heat-sensitive materials. You can process several pieces of varying sizes and thickness simultaneously to speed up production. The digital microprocessor technology and touch-pad controls ensure quick, efficient, and easy operation.

The Expression® line of vacuum presses from D&K offers guaranteed quality results every time for mounting, laminating, and texturing projects. Vacuum presses allow users to simultaneously process multiple pieces of artwork with varying sizes and thicknesses. The 4468H Vacuum Press is the preferred choice for framing professionals with user-friendly touchpad controls with six factory-installed programs for processing common applications. The 4468H Vacuum Press also includes an Expression® cutting mat that allows you to use the top of the press as a working surface.

**A LIST OF 4468 REPLACEMENT PARTS WITH LINKS IS UNDER THE DEMO VIDEO ON THE LOWER PORTION OF THIS PAGE. **

FEATURES

• Touch-pad controls.
• Easy to read digital display.
• Programmable system controller with six preset programs.
• End-of-cycle signal.
• Space-saving work surface.
• Maintenance-free vacuum pump.
• Made in the USA

SPECIFICATIONS

• Working Capacity: 44 x 68 x 1 Inch
• Dimensions: 72.25 x 56.5 x 6.5 Inch
• Net Weight: 205 lbs
• Shipping Weight: 720 lbs
• Power: 230V AC, 15 Amps
• Electrical Requirements: 4-wire, single phase NEMA L14-20 plug
• Pressure: 13 psi
• Floor Stand: Optional – 41 lbs.

CLICK for Optional Stand

Plug Location: If you are facing the machine the plug is in the right rear corner, the back of the machine. The cord is 7-1/2 feet long. If you are looking at the machine from behind it is on the left corner

Shipping Information: The 4468H ships by truck. It is crated and on a pallet.

Shipping Dimensions: 92 L. x 27 W. x 80 H. inches with or without a Stand included.

Shipping Weight: 720 lbs without the Stand and 800 lbs with the Stand. It ships Class 150 usually from Illinois 60007.

DEMO VIDEO

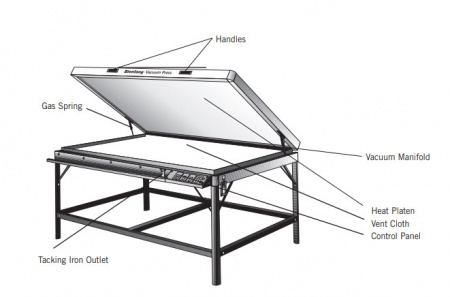

D and K Replacement Parts for Dry Mount Press 4468H/2160

**Click on the links below to go to the item page for the parts.**

Heater - TS2302089 for Dry Mount Press 4468H
Vent Cloth - TS5214008 for Dry Mount Press 4468H
Diaphragm Assembly- TS6299114KIT for Dry Mount Press 4468H
Top Cover - TS6201142KIT for Dry Mount Press 4468H
Platen Kit - TS5612019 for Dry Mount Press 4468H
Formica/Honey Comb - TS5704014KIT for Dry Mount Press 4468H
Foam Strips Front/Back - Long: Individual Strip - TS2205045 for Dry Mount Press 4468H
Foam Strips Sides - Short: Individual Strip - TS2205046 for Dry Mount Press 4468H
Ceramic #8 Wire Nut - Heater - TS1221008 for Dry Mount Press 4468H
Top Insulation, 3 Pcs - Ea Piece - TS511009 for Dry Mount Press 4468H

Common Parts for D and K Replacement Parts for Dry Mount Press 3648H/2180, 4468H/2160, 5298H/2170 and 3444H

**Click on the links below to go to the item page for the parts.**

Tracking Iron Bolt Outlet - TS1105024 for Dry Mount Press 3648H, 4468H and 5298H
Solenoid - TS1122087 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Pump Elbow - TS1122092 for Dry Mount Press 3648H, 4468H and 5298H
Side Latch - TS1123013 for Dry Mount Press 3648H, 4468H and 5298H
Gas Spring - TS1124013 for Dry Mount Press 3648H, 4468H and 5298H
Accessory Plug - Pump - TS1202052 for Dry Mount Press 3648H, 4468H and 5298H
Solid State Relay - TS1306026KIT for Dry Mount Press 3648H, 4468H and 5298H
20AMP Breaker Switch - TS1308041 for Dry Mount Press 3648H, 4468H and 5298H
Conduit Strain Relief - TS1106047 for Dry Mount Press 3648H, 4468H and 5298H
Power Board - TS2304092 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Power/Control Board - TS2304093 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Hinge Screw - TS40030 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Ribbon Cable - TS5304026 for Dry Mount Press 3648H, 4468H and 5298H
Sensor Assembly - TS6208075 for Dry Mount Press 3648H, 4468H and 5298H
Current Pump - Thomas - TS6299126KIT for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Side Latch Retrofit Kit - TS6299139 for Dry Mount Press 3444H, 3648H, 4468H and 5298H
Wiring Harness - TS5304027 for Dry Mount Press 3648H and 4468H
Ball Studs - TS1068010 for Dry Mount Press 3648H, 4468H and 5298H
Leveling Feet - TS1103010 for Dry Mount Press 3648H, 4468H and 5298H
C-Clips - TS1126015 for Dry Mount Press 3648H, 4468H and 5298H
Manifolds - TS5099023 for Dry Mount Press 3648H, 4468H and 5298H
Conduit Connectors - TS1106046 for Dry Mount Press 3648H, 4468H and 5298H

Warranty: The D and K 4468 and 5298 Vacuum Presses have a One (1) Year Warranty which includes Parts and Service. This does not cover customer adjustments for pressure. Sometimes it may be necessary for the customer to make a lid/hinge adjustment after they set the machine up. Directions for setting up the equipment as well as making adjustments are included in the owner’s manual that will come with the machine.
