Description

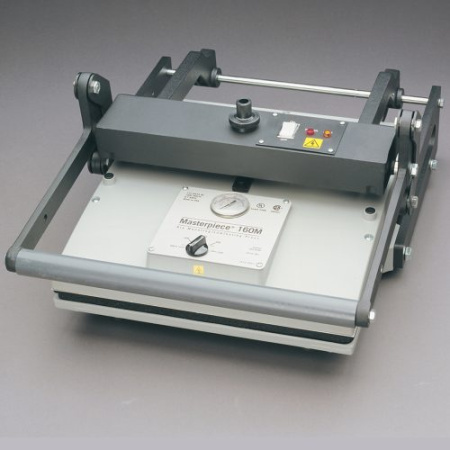

D and K Masterpiece 160M Expression Mechanical Press with 15.5 x 18.5 Inches Workspace

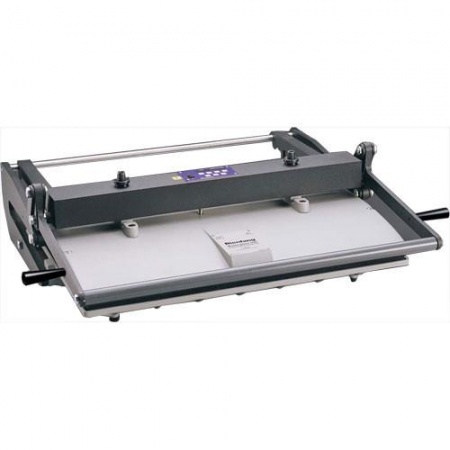

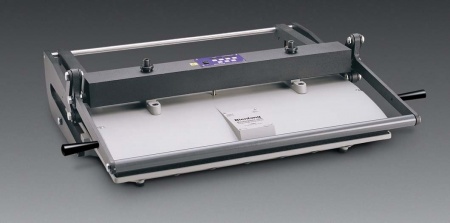

The Expression® (EXP) 160 Mechanical Press is designed to provide consistent heat and uniform pressure for mounting, laminating, or texturing items including photos, plaques, and artwork. The 160 Mechanical Press features an easy-to-use temperature control knob for setting adjustments. The 160 Mechanical Press is a dependable workhorse designed to process large pieces up to 30 inches wide by any length.

The quality features engineered into the larger model are also available in compact machines with a smaller footprint and a working space of 15.5 x 18.5 Inches.

**A LIST OF 160M REPLACEMENT PARTS WITH LINKS IS ON THE LOWER PORTION OF THIS PAGE. **

D & K Expression Mechanical Press Features

• Designed to consistently provide even heat and uniform pressure - two of the most important requirements for quality mounting and laminating.
• Temperature control knob
• Simple controls for easy operation and professional results.
• Capable of finishing pieces even larger than the press itself.
• Durable framework, built-to-Iast construction.
• Easy-to-c1ean platen surfaces.
• Made in the USA
• Presses are UL Listed and CUL Approved.

SPECIFICATIONS

• Capacity:15.5 x 18.5 Inch (39 x 47 cm) 30 Inch (76 cm) by any length in sections
• Dimensions:19 W x 23 D x 11 H Inch (48 x 58 x 28 cm) 20 in. (51 em) high open
• Shipping Weight : 60 lb. (27 kg)
• Power Requirements : 115 VA(, 8.7 Amp

D and K Replacement Parts for Dry Mount Press 160M/1400

**Click on the links below to go to the item page for the parts.**

Heater Kit - TS6299014 for Dry Mount Press 160M
Platen Kit - TS6299020 for Dry Mount Press 160M
Tai Rod - TS100449-01 for Dry Mount Press 160M
Base 160/DS PTD Grey - TS100452 for Dry Mount Press 160M
Crossbeam - TS5609028 for Dry Mount Press 160M

Common Parts for D and K Replacement Parts for Dry Mount Press DS100, 160M, 210M, 210MX, 250, 500T and 500TX

**Click on the links below to go to the item page for the parts.**

Toggel Nut - TS100590 for Dry Mount Press DS100, 160M, 210M, 210MX and 250
Thermostat Kit - TS100897KIT for Dry Mount Press 160M and 210M
Sponge Pad - TS130107 for Dry Mount Press 160M and DS100
On/Off Switch - TS1302053KIT for Dry Mount Press 160M, 210M and DS100
Porcelain Wire Nuts - TS18005 for Dry Mount Press DS100, 160M and 210M
Electrical Kit - TS6299038 for Dry Mount Press 160M and 210M
Thermometer Kit - TS6299011 for Dry Mount Press 160M, 210M, 210MX, 500TX and 500T
Foot Kit - TS6299022 for Dry Mount Press 110S/168, 160M/1400, 210M/1403, 210MX/1407 and 250
Toggle Plate Bolt Kit - TS6299024 for Dry Mount Press 160M, 210M, 210MX and 250
Pressure Adjustment Kit - TS6299033 for Dry Mount Press 160M and DS100
Thermostat Knob Kit - TS6299010 for Dry Mount Press 160M, 210M, 500T, and DS100
Pressure Board - TS130141 for Dry Mount Press 160M and DS100

If you have any questions or concerns, contact a customer service representative today.
