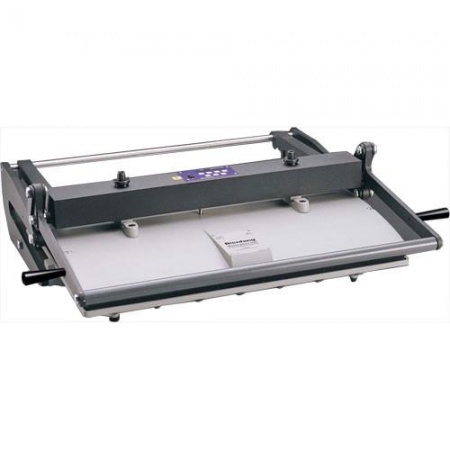

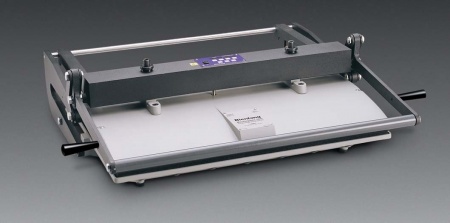

D and K Masterpiece 500T/1415 Expression Mechanical Press with 26 x 34 Inch Workspace

The Expression® (EXP) 500T Mechanical Press from D&K Group is designed to provide consistent heat and uniform pressure for mounting, laminating, or texturing large items including photos, plaques, and artwork. The 500T Mechanical Press features simple controls for easy operation and professional results. The press features an easy-to-clean platen surface that provides uniform temperature for 100% bonding. The 500T Mechanical Press can process large pieces up to 51” wide by any length.

The D and K Masterpiece 500T Expression Mechanical Press is Ideal applications for these presses include mounting and laminating large photos, artwork, and posters up to 51 Inches (130 mm) wide.

**A LIST OF 500T/1415 REPLACEMENT PARTS WITH LINKS IS ON THE LOWER PORTION OF THIS PAGE. **

D & K Expression Mechanical Press Features

• Fast Operation: Superior heating system quickly brings the platen to uniform temperature ensuring 100% bonding.
• Extended Temperature Range: Thermostat control adjusts from 150ºF to 350ºF (68 -177ºC) to cover a wide range of operating temperatures.
• Temperature Readout: Incorporates a direct-reading thermometer that accurately monitors platen temperature.
• Capable of finishing pieces even larger than the press itself.
• Durable framework.
• Made in the USA
• U/L listed.

SPECIFICATIONS

• Capacity:26 x 34 in. (66 x 86 cm) 51 in. (130 cm) by any length in sections
• Dimensions:39 W x 37 D x 12 H Inch (99 x 94 x 31 cm) 20 in (51 mm) high open
• Shipping Information: Weight: 225 lb. (125 kg) Crated is 320lbs. Shipping Dimensions are 40 x 45 x 14 inches. Shipping Weight is 320 lbs. Class 175.
• Power Requirements: 120 VAC, 12 Amp (230 VAC, 5.8 Amp) *

D and K Replacement Parts for Dry Mount Press 500T

**Click on the links below to go to the item page for the parts.**

Name Plate - TSS6111S9 for Dry Mount Press 500T
ON/OFF Switch - TS13020S3KIT for Dry Mount Press 500T
Sponge Pad - TS1S3260 for Dry Mount Press 500T
Pressure Board - TS1S0162 for Dry Mount Press 500T
Crossbeam - TSS609024 for Dry Mount Press 500T
ELECTRICAL KIT SOOT 11SV - TS6299037 for Dry Mount Press 500T
BRACKET ARM SOOT - TSS608017 for Dry Mount Press 500T
TOGGLE NUTS - TS100615 for Dry Mount Press 500T
PRESSURE ADJUSTMENT - TS1S3308 for Dry Mount Press 500T
TOGGLE BOLT - TS100614 for Dry Mount Press 500T
TIE ROD - 100617 for Dry Mount Press 500T
BOLT TIE ROD - 100618 for Dry Mount Press 500T
TS100897KIT Thermostat Kit for 160M, 210M and 500T Presses

Common Parts for D and K Replacement Parts for Dry Mount Press 550, 500T and 500TX

**Click on the links below to go to the item page for the parts.**

Platen Kit - TS6299018 for Dry Mount Press 550, 500T and 500TX
Sponge Pad - TS153260 for Dry Mount Press 550 and 500TX
Replacement Control Assembly - TS2304084 for Dry Mount Press 250 and 550
Foot Kit - TS6299021 for Dry Mount Press 550, 550T and 500TX
Transformer - TS2304083 for Dry Mount Press 250 and 550
Thermal Fuse Kit - TS6299140 for Dry Mount Press 250 and 550
Toggle Bolt Kit - TS6299023 for Dry Mount Press 550, 550T and 500TX
Crossbeam Bolt Kit - TS6299025 for Dry Mount Press 550 and 500TX
Handle Kit - TS6299028 for Dry Mount Press 550, 550T and 500TX
Pressure Adj. Kit - TS6299031 for Dry Mount Press 550, 550T and 500TX
Output Module - TS1408005 for Dry Mount Press 210MX, 500TX, 250 and 550
Sensor Assembly - TS6208059 for Dry Mount Press 210MX, 500TX, 250 and 550
