Description

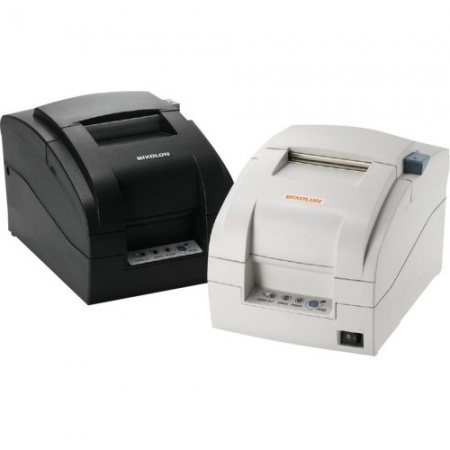

Heavy Duty Printer for Amrotec Money Counters

Note:

• The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
• These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
• These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.

Print:

PRINTING METHOD: 9 Pin Serial Dot Matrix
PRINTING SPEED: Max 5.1 lps
Printing Width: 63.5mm(2.5 inch)
RESOLUTION:

• Horizontal: 80dpi
• Vertical: 144dpi

CHARACTER SIZE: Font A: 9 x 9, Font B: 7 x 9, Korean: 17 x 9, Chinese: 16 x 16
CHARACTERS PER LINE: Font A: 35 (3half dot: 33) , Font B: 40, Korean: 20, Chinese: 22 (3half dot: 21)
CHARACTER SET:

• Alphanumeric Character: 95
• Extended Graphics Pages: STD - 128 x 27, CHN - 128 x 21, KOR - 128 x 1
• International Character: 48

Sensor: Paper End, Black-mark, Paper Near End, Wall Mounting Paper Near End(option), Rear Cover Open Printing Direction: Bi-direction Receive Buffer: 64Kbyte NV Image: 256Kbyte Cuter type:

• A: Tear-bar
• C: Auto Cutter (Rotary)

Paper:
Width: 76.0 Ø 0.5mm
Max. Rol Diameter: 83mm
Suply Method: Easy Paper Loading

Reliability:
Printer Unit (MCBF): 18,000,000 lines
Head: 300,000,000 dots/wire
Auto Cuter: 1,500,000 cuts

Ink Ribbon:
Color: Black & Red
Reliability (Characters):

• Black : 1,500,000
• Red : 750,000
