Description

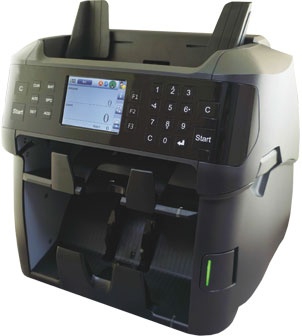

Amrotec X-1100 Mixed Money Counters, Currency Counters

AMROTEC® X-1100, ALL-IN-ONE Currency Fitness Discriminator model is the high-performance and heavy-duty with a dedicated reject pocket for unfit, non-recognized and suspect banknotes. It is built with most high-tech sensors and mechanism to be able to perform full-featured fitness sorting operation (detecting and separating banknotes with holes, tears, fold, missing corners, tape, soil etc) according to Federal Reserve Bank Recirculation Guideline as well as ATM cash replenishment need. Further, it is equipped with the most comprehensive and user-friendly functions and user-interface necessary for high-volume bank back office, CIT companies and large retail stores require cash-recycling, thus increase productivity and cost-savings for users.

X-1100 further provides highest security standards against the latest counterfeiting attempts through multi-detection technology including IR, MR and UV sensors, while still maintaining a low false alarm level and an excellent acceptance rate of bill recognition and fitness sorting using CIS sensor.

Advanced X-1100 model can be equipped with optional feature to read banknote serial numbers or decoding barcoded tickets require in various institutions and venues.

FEATURES

• Multi-Currency Detection: Up to 5 currencies (USD Standard)
• User-Selectable Count/Read Options
• Fitness Sorting
• Display: Large Color TFT Display with Graphic User-Interface
• Dual User Design: Two tellers share one machine with individual setting preferences
• Simple Maintenance: Easy access from top and reject bill path facilitates routine maintenance work
• Full Range of I/O Port including dual COM ports and USB
• PC Upgrade: Easy USB connectivity for system/software upgrade

SPECIFICATIONS

• Counterfeit Detection: MG (Magnetic), IR (Infrared), MR, UV (Ultraviolet ), & CIS (Contact image sensor) image recognition.
• Counting: 600 / 900 / 1500 notes/min
• Stacker Option: Double
• Hopper Capacity: 500 new / 400 old
• Stacker Capacity: 200 new / 150 old
• Reject Capacity: Max. 100 notes
• Countable Note Size: 60x85x0.08mm to 100x190x0.12mm
• Power Supply: 90 volts ~ 240 volts 50-60 Hz
• Dimensions: 13 W x 13 D x 13.8 H
• Weight: 39.6 lbs

Additional Information

• Manufacturer : Amrotec
• Manufacturer Part #: X-1100
• Model #: X-1100
• Warranty: One Year
