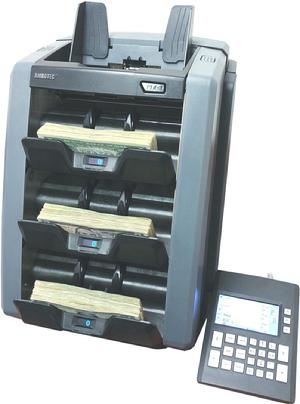

AMROTEC X-3000 Currency Sorters with 3-Stackers

AMROTEC® Introduces the New X-3000 Currency Sorter with 2 main Stacker Pockets and 1 Reject Pocket, facilitates Mixture banknotes Value counting, ATM and FED Fitness Detection, 2 Denomination Sorting into Dual Pockets as wel las Facing and Orientation. Further it is equipped with the capability of processing Casino barcoded Tickets and currency in mixture in one pass delivers to 2 Separate Stackers. Reject pocket is used for all non-recognized currency and tickets, suspect banknotes or unfit or non-assigned banknotes.The entire counting operation is performed non-interrupted without having to stop the machine, thus increase job-site productivity. The best equipment in the market for ATM cash replenishment for financial institutions or Casino operators

X-3000 is equipped with 4.3″ TFT Color External Control Panel (attachable as well) for operation along with count number display for each stacker pockets. X-3000 further provides easy system and software upgrade via USB PC connectivity or SD Card and equipped with dual COM ports, USB, & LAN port.

Multi-level counterfeit detection sensors includes Dual CIS, Multi-channel of MR, MG & UV to detect Super CF. Other feature includes easy access from all bill paths from front access (clam-sheel cabinet design) facilitates jam bill removal and simple routing maintenance work. Dual-user software design allows two tellers or cashiers to share one machine with invidual setting preferences.

Full Fitness Sorting capability with tape & three levels of detection (ATM, FED FIT, UNFIT) complied with Federal Reserve Fitness Sorting Guideline (Recirculation Policies 2008). Various Counting Modes are provided including MIX, Single(DD), Face, Orient, Issue, Barcode (TITO), SN (option) and Multi-Currency Detection Up to 10 currencies in one single machine (USD Standard) interface.

FEATURES

• Processing of up to 10 currencies in one single machine (USD currency as standard)
• Counting Mode includes Mix, Sort, Face, Orient, Fitness, Barcode (Tickets), SN (option)
• Full fitness sorting capability with tape & three levels of detection (ATM, FED FIT, UNFIT)
• Two denomination sorting into two separate stackers or use second as an overflow pocket
• Separates Currency & Casino Tickets into two stackers; sends Ticket decoding info to PC
• Dual-User design allows two tellers to share one machine with invidual setting preferences
• Simple Maintenance; Easy access to all bill paths from front access (cabinet design) facilitates jam bill removal and routing maintenance work
• Equipped with advanced sensors including Image, MR, MG & UV to detect counterfeit bills
• Full range of I/O Port includes dual COM ports, USB, & LAN
• Easy system and software upgrade via USB PC connectivity or SD Card

SPECIFICATIONS

• Feed System: Roller friction system
• Counterfeit Detection: Dual CIS, Magneto-resistive, Multi-channel of 2*MG and UV sensors
• Counting: 600/900/1200 NPM « 800npm in denominating, Sorting, Fitness, decoding)
• Available Currencies: USD (standard), EUR, GBP, CAD and many other countries
• Hopper Capacity: 500 new
• Stacker Capacity: 200 new (circulated) to each stackers
• Reject Capacity: Max. 200 notes (circulated) to reject stacker
• Countable Note Size: 60 x 85 x 0.08 mm -100 x 190 x 0.12 mm
• Display: Count display for each pockets and 4.3" External TFT color control panel
• Power Supply: 100 - 240 V, SO/60Hz
• Dimensions: 14.2" (W) x 17.3" (D) x 17.3" (H)
• Weight: 66 Ibs / 30 kgs
• Power Consumption: Max. 100 W
• Interface: RS -232 x 2 USB x 1, SD card, LAN
• Options: Remote Display, Thermal Printer, Dot-Matrix Printer

Additional Information

• Manufacturer :Amrotec
• Manufacturer Part #:X-3000
• Model #:X-3000
• WarrantyOne Year
