Description

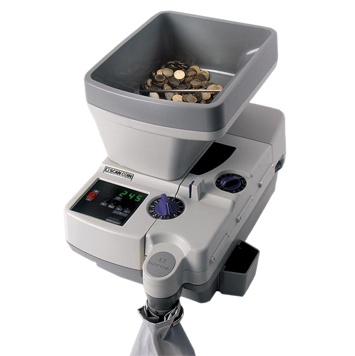

Scan Coin SC 360 Coin Counter and Sorter

The Scan Coin SC 360 Coin Counter and Coin Sorter.: Ideal for Mid Volume Coin Wrapping Applications

The latest coin counters from scan coin, SC 350/360, fill an important gap between heavy-duty counters and small backoffice machines. These high-speed coin counters combine superior versatility with many advanced features, which are fitted as standard. The difference between the two is that SC 350 includes a manual hopper, while SC 360 has a larger, automatic hopper with filling.

A universal partner
Whether you want to count, verify or bag volumes of coins or tokens, you have a reliable and flexible partner in SC 350/360. Separate adjustments for coin or token diameter and thickness make the SC 350/360 completely universal. Despite their relatively compact size, these are both high-performance units positioned to meet handling needs between heavy-duty counters and small back-office machines.

Versatility at its best
Due to their range of flexible functions, SC 350/360 are truly versatile coin counters. The serial interface makes it possible to monitor and control the SC 350/360 from a PC. This offers many convenient possibilities, e.g. a controlled cash-out unit for casinos.

Competitive performance and price
With SC 350/360 you get a competitive coin counter that offers excellent value for money. Several features normally considered accessories are standard on SC 350/360 – RS 232 interface for external control, interface for remote display and other accessories – as part of an unbeatable, attractively-priced package. Other features include pre-selectable bag stops, memory, automatic reverse function to remove jammed coins, and automatic stop and outsort function for small coins.

A large number of accessories and 7 pre-programmable quantity stops (plus 1 continuous) make the SC 350/360 highly effective filling machines, whether applied to coin tubes, big bags or small bags.

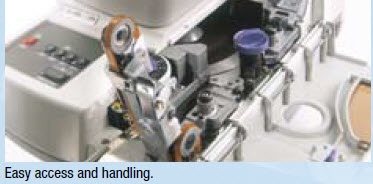

Easy access and handling
Compared with competing machines, SC 350/360 provides dramatically improved access to the coin rail, making it easy to open the hatch for checking or service. A non-volatile memory allows storage of data on counted coins, and electronic sensing technology assures high accuracy and low noise. scan coin customers will also recognize, and benefit from, our standard interfaces and functions.

Technical Specifications

Width: 295 mm/12.0"
Depth: 480 mm/18.9"
Height: 380 mm/15.0"
Weight: 19.5 kg/43.0 lbs
Voltage: 110/230 V, 60/50 Hz
Power: 120 W
Speed: Up to 3,000 coins/min
Diameter Range: 15-34 mm/0.56-1.34" or 18-38 mm/0.71-1.50"
Thickness Range: 0.8-3.4 mm/0.03-0.15"


Accessories/Options

BGS 1 : Bag guide with shelf
BG 1 : Bag guide without shelf
FC 3 : Foot-control
BA 5 : Bagging attachment (for the rejected coins)

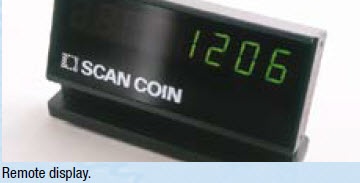

RD 8 : Remote display
IH 1 : Insert holder
TI 1 : Tubing insert for prefabricated tubes
