Preferred Pack PP-983LP SCALE Low Profile Pallet Stretch Wrapping Machine with Scale and Ramp
The Preferred Pack PP-983LP SCALE with Scale and Ramp is a valuable addition to any packaging situation. The Preferred Pack PP-983 LP Pallet Wrapper is extremely easy to use, Operator Friendly Pallet Wrapper. This Pallet Wrapping Machine has all the bells and whistles which are available on any top of the line Pallet Wrapper, yet still is simple to use and understand for any level operator. The Preferred Pack PP-983 LP SCALE has an adjustable PHOTO EYE, which makes it possible to control overwrapping. No More Wasting Wrapping Material, no matter how tall or at what height the operator is, this feature will tell you how tall each pallet is, and automatically stop wrapping at that level.
The Preferred Pack PP-983 LP SCALE High Profile Pallet Stretch Wrapping Machine is a Semi-automatic pallet wrapper with mechanical pre-stretch and digital controls. The Preferred Pack PP-983 LP SCALE Pallet Wrapper has a 10 program memory, Variable wrap count, 4,000 lb capacity, fixed speed turntable, standard machine accommodates pallets up to 85 Inch high, Heavy duty belt drive for film carriage, #50 heavy duty drive chain on turntable, 14 sets of double roller turntable supports, 59" heavy duty turntable with diamond plate non-slip surface. 110-volt power.
- 225% Pre-Stretch: 3 ft. of film going through pre-stretch rolls comes out 10 ft. of film onto load. Other pre-stretch gearing available with simple sprocket change
- Patented Triple knurled roller pre-stretch system with 225% powered pre-stretch. Easy Thread design with safety door; if opened, shuts off the machine.
- Heavy Duty Chain Drive on the turntable with 18 sets of double roller turntable supports.
- Photo Eye: Will automatically seek height of pallet load
- Reinforcing Wrap: Allows the machine to apply multiple wraps at any desired location
- Home Position: Turntable always returns to the original position
- Automatic or manual operation switch
- Adjustable wrapping tension
- Adjustable turntable speed
- Adjustable carriage elevator speed
- Film Break Re-Start: If film brakes during operation, simply press START button again to continue the program cycle. No need to start from the beginning again.
- Top and Bottom Wrap Counter: Allows operator to select the number of wraps on top or bottom of the load.
- Film carriage security door with safety interlocks: If the door is opened, the machine will automatically be shut off.
- Emergency stop switch: When activated will shut off the machine.

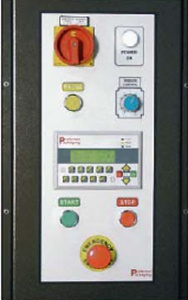

Easy to Use and Understand Front Control Panel
- PLC with 10 Program Memory
- Bottom and Top Wrap Count
- On/Off Switch
- Emergency Stop Switch
- Start/Stop Switch
- Manual/Automatic Mode
- Pause Botton
- Film Tension Control
- Turnable Speed
- Film Carriage Speed
- Maximum Load Size (LxWxH):.... 48 x 48 x 85 INCHES
- Maximum Load Weight:.... 4,000 Lbs. Dynamic
- Machine Dimensions (LxWxH):.... 96 x 58 x 102 INCHES
- Crated Size (LxWxH):.... 120 x 62 x 30 INCHES
- Estimated Shipping Weight:.... 1,200 Lbs.
- Turntable Diameter:.... 59 INCHES
- Turntable Drive:.... Fixed speed of 10 RPM Mechanical break stretch
- Turntable Drive Method:.... Heavy duty chain drive
- Turntable Support:.... Heavy Duty Delrin Rollers w/Sealed Bearings (very quiet)
- Carriage Elevator:.... Fixed speed
- Warranty:.... 1 years on all components
- CE Approved:.... Exceeds OHSA Safety Standards.
- Power:.... 110 volts - 10 amps - single phase
- Machine Weight:.... 1,000 lbs
- Ramp :.... Not Included
- Omron Relays and Inverters
- Forklift Portable
- Positive Alignment
- 5,000lb. Display (Scale has a 4000lb. capacity) turntable 983 only
- 105'' Wrap height
- 72''½ Diameter turntable
- Extra Ramp
- Pneumatic Top Pressure Plate for PP 983 Only. * Air required
- Base Extensions-24 INCHES
- PP-983 5,000 lbs Display weight Scale Packages using load cells
- Photo Eye-PP981
- Insta cut - Automatic film severance for PP-983 only
- Automatic film cut off and attachment uses remote start lanyard
|Manufacturer Part #:||PP-933LP SCALE|
